The practical problem at the heart of modern micro‑electronics
As devices shrink and yield targets tighten, micro‑drilling becomes more than a process — it is the bottleneck that decides whether a new component ships on time. In high-volume environments such as Taiwan’s semiconductor fabs, engineers face recurring faults: excessive heat-affected zones, inconsistent hole diameters, and long cycle times that break takt. The simplest recourse — crank up power or slow the line — damages throughput and product quality. That is why many teams now evaluate femtosecond lasers and custom DPSS designs as targeted remedies: they promise minimal ablation collateral and micron-scale repeatability where older systems fail.
Why conventional sources struggle with micro-drilling
Longer pulse lasers and generic fiber systems often leave a broad heat-affected zone (HAZ) and create redeposited melt around drill edges. The common symptoms are burrs, micro-cracking, and post-process rework, which escalate scrap rates. Key parameters like pulse duration and repetition rate interact with material thermal diffusion; when they are mismatched to the task, precision suffers. In short: the problem is rarely “not enough power” — it is mismatched photonics to the material and geometry.
How custom DPSS + ultrashort pulses address the core issues
Custom diode‑pumped solid‑state (DPSS) architectures tuned for ultrashort pulses reduce thermal loading by restricting energy deposition to femtoseconds. That lowers HAZ and improves edge definition during micro‑drilling and micro‑vias creation. When designers pair appropriate fluence, spot size and repetition rate they get clean ablation and high-speed throughput — without thermal stress that would otherwise cause delamination or microfractures. For teams looking at process upgrades, assessing femtosecond laser technology alongside custom DPSS modules often reveals the sweet spot between cycle time and hole quality.
Practical trade‑offs and the mistakes I’ve seen on the shop floor
There are real trade-offs. Higher repetition rates increase throughput but can accumulate heat if pulse energy or scan strategy aren’t rebalanced. Smaller spot sizes improve resolution but can require beam‑delivery upgrades and tighter fixtures. Common mistakes include assuming the “same optics” will work after changing pulse duration, or skipping first‑article trials on actual substrates. — A modest pilot campaign with measurement of burr height, circularity, and electrical connectivity saves months of rework.
Alternatives, and when they make sense
Not every application needs femtosecond DPSS. Consider these paths:
- Nanosecond DPSS or fiber lasers: good for thicker substrates where throughput matters more than edge quality.
- Ultraviolet lasers: valuable for polymers and photoresists due to higher absorption at short wavelengths.
- Mechanical micro‑drilling: cost‑effective for low‑precision or low‑volume runs.
Choose ultrashort‑pulse DPSS when micron accuracy, minimal HAZ, and high first‑pass yield are priorities; choose alternatives when materials or budgets demand them.
Implementation checklist for process teams
Before committing, validate these items in a controlled pilot:
- Define acceptance metrics: hole diameter tolerance, circularity, and maximum allowable HAZ.
- Test on production substrates with the intended fixtures and cooling strategy.
- Measure beam quality (M2), pulse duration, and spot size at the workpiece — not just at the laser aperture.
- Plan maintenance and spare parts for DPSS modules and optics to avoid unexpected downtime.
Advisory: three golden rules for choosing the right photonic solution
1) Metric-first selection — pick the system that demonstrably meets your acceptance criteria in a pilot run, not the one with the flashiest spec sheet. 2) Balance pulse energy and repetition rate — aim for minimal cumulative thermal load while keeping throughput. 3) Integrate beam delivery early — fixturing, vision alignment, and beam path tolerances determine real-world repeatability.

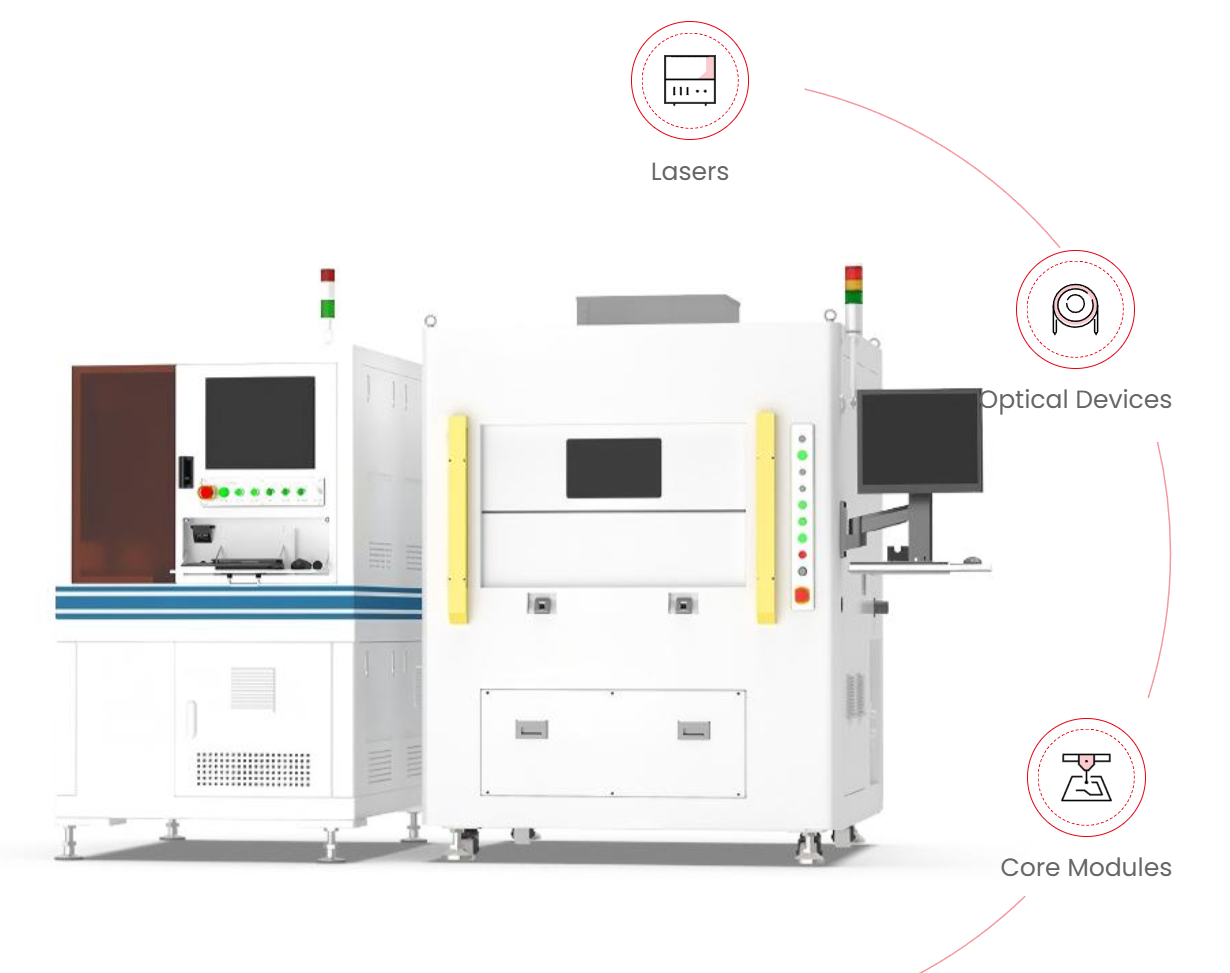

When these rules guide procurement and process design, teams reduce scrap, shorten ramp time, and protect delicate microstructures — the exact outcomes JPT’s customizable ultrafast platforms are built to enable. JPT. —
